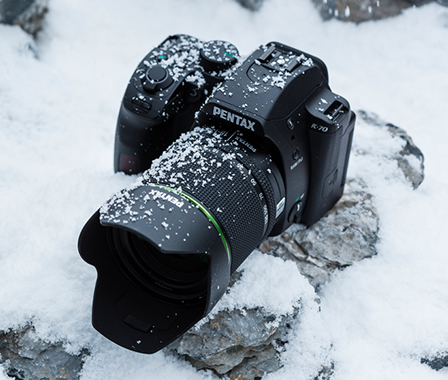

Dustproof, weather-resistant body


Outstanding cold-proof performance down to −10°C

A comprehensive imaging system, including lens, to take on challenging scenes

Excellent reliability proven in stringent operation tests

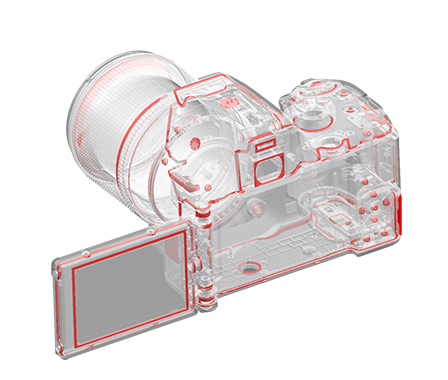

The PENTAX K-70 incorporates 100 sealing parts throughout its body, including the LCD monitor. By pairing it with a PENTAX AW- or WR-series lens, you have a highly dependable imaging system with superb environment-resistant performance.
AW: All Weather (dustproof and weather-resistant); WR: Weather Resistant

Anticipating many users’ needs for photo shooting in extremely cold locations, the PENTAX K-70 was subjected to stringent environmental tests in temperatures as low as -10°C. Its dependable cold-weather performance assures stable, responsive, high-precision operation of mechanisms and circuitry, while minimizing fluctuations in battery voltage, even in freezing locations.

* To eliminate the potential causes of breakdown or malfunction, we advise you to wipe rain or water off the PENTAX K-70 completely and as soon as possible to keep it dry.

** Battery performance may deteriorate as the temperature of the shooting location goes down. When using the PENTAX K-70 in low-temperature locations, we advise users to carry a spare battery and keep it warm by storing it in a pocket.
*** Please read instruction manual carefully before use.

Compact design

A compact, maneuverable body, handy for outdoor shooting

Featuring a dustproof, weather-resistant body and a vari-angle LCD monitor, the
PENTAX K-70 has also been designed to be compact and maneuverable. By pairing it
with one of the compact, lightweight PENTAX-DA-series lenses, you can enjoy
outdoor photography more easily and intuitively than ever before.

High-precision autofocusing even at −3EV illumination level

DR (Dust Removal) mechanism

Accurate detection of the subject even in dark locations

Easy removal of dust particles from the image sensor

The PENTAX K-70 comes equipped with a dependable, high-sensitivity AF sensor module with nine cross-type sensors in the middle. It captures the subject with great accuracy, even in poorly illuminated locations — as low as -3EV — where even the human eye has difficulty in detecting the subject.

The PENTAX K-70’s image sensor is treated with PENTAX-original SP coating to prevent dust from clinging to the surface. If any dust remains on the surface, the PENTAX-original DR (Dust Removal) mechanism can shake it off using high-speed vibrations, preventing any dust spots from appearing on captured images.

The front surface of the image sensor unit has been treated with SP coating to prevent particles from adhering to it.

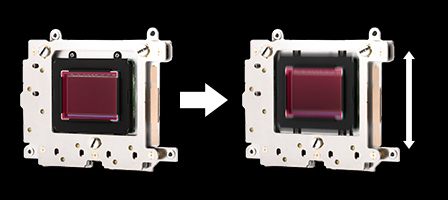

 Any remaining particles can be removed by the vertical vibrations generated by the SR driving mechanism.

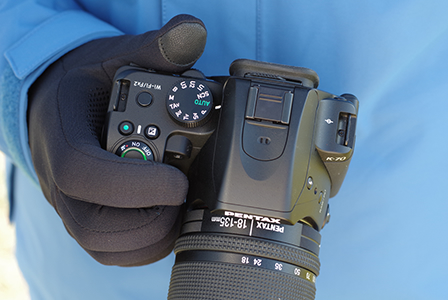

Grip

Control buttons and mode dial

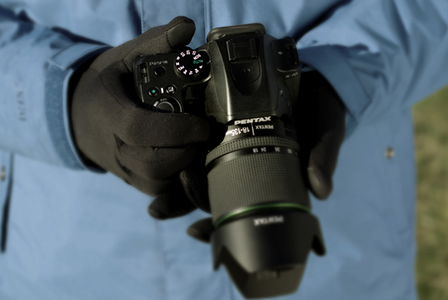

The newly designed grip assures a firm hold of the camera body, even when wearing gloves.

Four buttons of the four-way controller are contoured for easy access and unfailing fingertip operation, even with a gloved hand. The mode dial’s height has been optimized for ease of rotation. The PENTAX K-70 has been designed with meticulous attention to every detail to provide optimum comfort and utmost operability.

ISO 800

ISO 3200

ISO 12800

ISO 25600

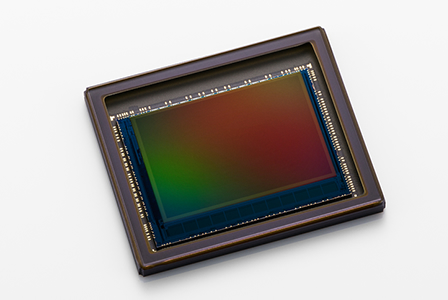

High-performance image sensor unit for fine-detailed images

The PENTAX K-70’s AA-filter-free design eliminates the AA (anti-aliasing) filter, which has an adverse effect on the camera’s resolving power. This design optimizes the resolving power of the approximately 24.24 effective megapixels provided by the high-resolution APS-C-size CMOS image sensor, while assuring high-speed readout of rich-gradation, 14-bit image data.

AA-filter simulator

State-of-the-art function to minimize moiré and false colors

The PENTAX K-70 features an AA (anti-aliasing) filter simulator,* which effectively minimizes the moiré patterns often generated on subjects with fine, repetitive patterns, and the false colors commonly generated at the edges of high-contrast images. With the help of the SR (Shake Reduction) mechanism, this simulator applies microscopic vibrations to the image sensor unit at the sub-pixel level during image exposure to minimize these adverse effects. It lets you choose the desired visual effect based on your creative intentions —between the filtering effect of the AA simulator and the higher resolving power of an AA-filter-free design.

* This simulator cannot be used in some shooting modes, and doesn’t work with some functions.
* This simulator works most effectively with a shutter speed of 1/1000 second or slower.

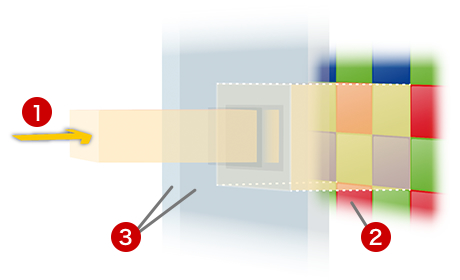

Principle of optical AA filter

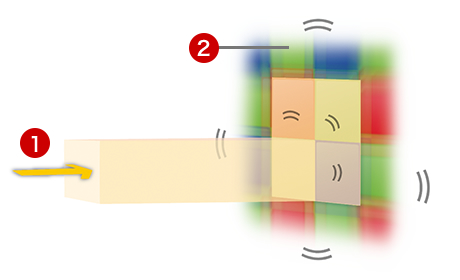

Principle of AA filter simulator

 Light Color filter AA filter

Microscopic vibrations applied at sub-pixel level

Accelerator unit

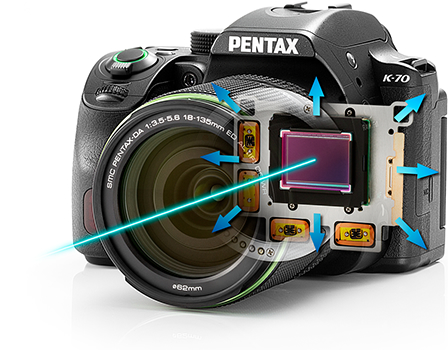

Effective shake reduction with all lenses, assuring improved compensation effects

The PENTAX K-70 features the PENTAX-original, in-body SR (Shake Reduction) mechanism with a compensation effect of 4.5 shutter steps. It works effectively with all PENTAX interchangeable lenses — from ultra-wide-angle to super-telephoto models — and minimizes camera shake in camera-shake-prone conditions, such as when shooting low-light scenes using natural light only or when using a telephoto lens. It also comes in handy with panning shots, since it automatically detects the direction of the camera’s movement with a gyro sensor, and efficiently controls the SR unit to produce the best possible image. Just by keeping the SR mode turned on, you can effortlessly minimize camera shake with both normal images and panning shots.

* Measured in conformity with CIPA testing standards (using the smc PENTAX-DA 18-135mm F3.5-5.6ED AL[IF] DC WR lens, at a focal length of 135mm)

An array of compensation functions

Diffraction compensation

High-quality images assured, even at the edges of the image field

Diffraction blur minimized at closed-down apertures

The PENTAX K-70 effectively compensates distortion, vignetting and lateral chromatic aberration of magnification caused by particular characteristics of a lens to deliver sharp, high-contrast images, even at the edges. During RAW-data development, it can even compensate the fringe effect.

This function compensates the deterioration in the camera’s resolving power that is caused by diffraction phenomena. By properly using lens information to process image data, it compensates the diffraction blur effect by as much as approximately two aperture stops.* This function comes in handy in scenic photography, when you want to close the aperture down to increase the depth of field without compromising the resolving power.

* Measured under RICOH IMAGING in-house testing standards.

• This function is usable with D FA-, DA- and DA L-series lenses. FA-series lenses are also usable, except for some models.

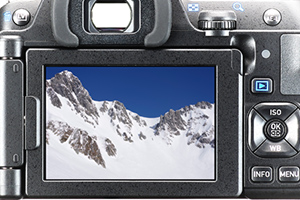

Outdoor-friendly LCD monitor:+2

Outdoor-friendly LCD monitor:-2

Red-lighted monitor

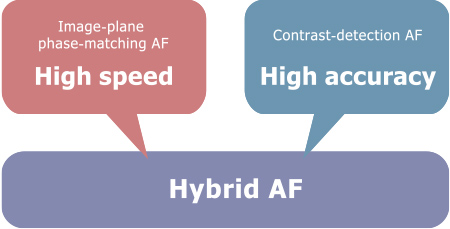

Hybrid AF

High-speed AF operation during Live View shooting

The PENTAX K-70 features PENTAX’s first Hybrid AF system during Live View autofocus operation. By coupling a contrast-detection AF sensor with superior focusing accuracy with a phase-matching AF sensor positioned on the image sensor’s surface, this innovative hybrid system optimizes the benefits of both AF systems to assure high-speed, pinpoint autofocusing on the subject.

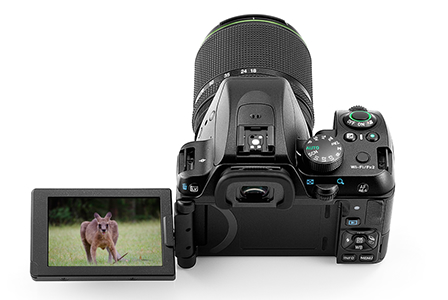

Vari-angle LCD monitor

For flexible outdoor shooting

The PENTAX K-70’s vari-angle LCD monitor allows you to position it at any desired angle, making image composition easier in a variety of Live View outdoor shooting applications, such as high-angle shooting using stretched arms or low-angle shots taken from ground level.

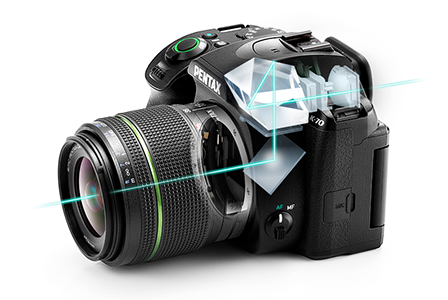

SAFOX X

High-speed, high-precision AF module highly responsive to low-illumination scenes and moving objects

The PENTAX K-70 features the high-precision SAFOX X AF sensor module for viewfinder shooting. Thanks to an AF sensor highly sensitive to low-illumination scenes and a diffractive lens incorporated in its optics, this module assures responsive, dependable autofocus operation with outstanding AF tracking performance in all directions, while minimizing chromatic aberration. By fine-tuning the timing of the AF sensor’s start-up action, the speed of autofocus response has been improved, especially at low illumination levels. Also, by improving the algorithm for moving objects, the focusing accuracy in the Continuous AF (AF-C) mode has been enhanced.

1/6000-second high-speed shutter

To capture the decisive moment with an active subject

With a top speed of 1/6000 second, the PENTAX K-70’s high-speed shutter unit captures an active subject in a sharply focused image.

11-point multi-pattern AF system

Delay-free detection of the subject

The PENTAX K-70’s 11-point AF system has nine cross-type sensors in
the middle to allow for flexible image composition. The middle AF sensor
accommodates an F2.8 light flux to assure pinpoint focus on the subject,
even when using a large-aperture lens with a shallow depth of field. The
Select-area Expansion function automatically refocuses on a moving
subject after it moves away from the initial point, with the help of the
neighboring points.

Cross-shaped sensor Linear sensor

F2.8 luminance flux linear sensor

Multi-mode AE system

Advanced 77-segment multi-pattern metering

A diverse choice of AE modes

Automatic detection of difficult lighting conditions

In addition to the conventional Program (P), Shutter-priority (Tv) and Aperture-priority (Av) modes, the PENTAX K-70 provides the PENTAX-original Sensitivity-priority (Sv) and Shutter-speed/Aperture-priority (TAv) modes. This multi-mode AE system means more creative and flexible expression of the subject’s motion and depth of field. It also provides a wide exposure compensation range of ±5EV (in still-image shooting) with a choice of 1/2EV or 1/3EV steps for more flexible exposure control.

The PENTAX K-70’s metering system divides the image field into 77 segments for high-accuracy light measurement. Thanks to an improved light-metering algorithm, it assures more precise, sensitive exposure control even for high-contrast scenes.

* The PENTAX K-70 also provides a choice of Center-weighted or Spot metering modes.

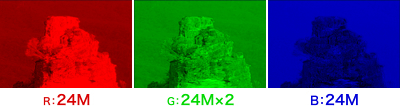

Pixel Shift Resolution System

Normal shooting

Obtained color data

Obtained color data

The camera takes four images of the same scene, and obtains the RGB color data and brightness data for each pixel.

Single-color data is obtained for each pixel.

• High-resolution, rich-gradation images are created from highly resolvable color and brightness data.
• No chromatic moiré (false color) is generated because no pixel interpolation takes place.

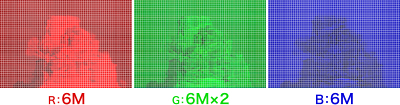

Based on the RGB composition ratio, the resolution of each color becomes 1/4 for R and B, and 1/2 for G.

De-mosaic process

The system interpolates for missing pixels by referring to neighboring pixels and/or outlines.

When the color of an interpolated pixel differs from the actual one, chromatic moiré (false color) is generated in that pixel.

This image is simulated.

Automatic tracking of celestial bodies without an equatorial device

By mounting the optional O-GPS1 GPS Unit, the PENTAX K-70 provides an automatic tracking function in astronomical photography. The camera calculates the movement of celestial bodies based on GPS data obtained by the unit, then shifts its image sensor in synchronization with their movement. As the result, celestial bodies are captured as beautiful point images without any streaking effects, even with extended exposures.

• In order to properly use the ASTROTRACER function, a number of settings must be input in advance. Refer to the O-GPS1’s operation manual for details.

Shot with ASTROTRACER using optional O-GPS1. (F5.6/ 300 sec./ ISO400)

A handy tool in bulb shooting

The bulb timer function comes in handy when photographing celestial bodies or fireworks. The PENTAX K-70 allows you to set an exposure time of 10 seconds to five minutes in 10-second steps, or five to 20 minutes with one-minute steps.

(F8.0/ 1200 sec./ ISO100)

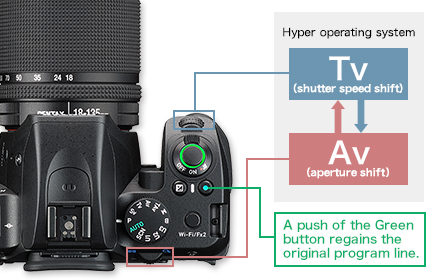

Double e-dials

Speedy control of the subject’s motion and the depth of field using Hyper Program and Hyper Manual modes

The PENTAX K-70 features a pair of e-dials, which can be used to control the PENTAX-original Hyper operating system. With a turn of either dial, you can instantly shift the aperture or shutter-speed setting without taking your eye from the viewfinder.

AWB

CTE

For flexible expression of the desired tone and shade for each subject

The PENTAX K-70 provides a selection of 13 Custom Image modes,* so you can apply the preferred finishing touch to your images based on your subject or creative intentions. Each mode provides minute adjustment of parameters such as saturation, shade, key, contrast and sharpness.**

* The Custom Image mode is fixed to Auto Select when the camera’s exposure mode is set to AUTO.
** Adjustable parameters may vary depending on the selected Custom Image mode.

Clarity control： -4

Clarity control： 0

Clarity control： +4

Skin Tone correction: OFF

Skin Tone correction: ON (Type2)

USER Mode

Easy assignment of frequently used settings

You can assign your favorite camera settings to three User Mode positions of the mode dial, then instantly recall the desired settings based on your subject or creative intentions. The following camera settings, which are recommended for best results, are initially assigned to the USER Modes as default:

■ USER Mode 1 “CLEAR TONE”

■ USER Mode 2 “HDR LANDSCAPE”

■ USER Mode 3 “ASTROPHOTO”

Designed to produce a high-contrast, high-saturation image, this mode emphasizes the clarity and freshness of subjects such as a snowfield in the sun or a crystal-clear lake.

Using the clarity-enhanced Advanced HDR (A-HDR) mode and through adjustment of the Custom Image function, this mode is useful for dramatizing scenic images.

This mode lets you capture beautiful colors of celestial bodies with great ease, while minimizing the fading of black color in the background of astronomical photography. It is also compatible with the ASTROTRACER functions.

Faithful reproduction of highlights and shadows

The HDR (High Dynamic Range) mode* synthesizes a single, rich-gradation image from three separate images taken at different exposure levels. It delivers an image similar to the one seen by the naked eye, by minimizing whitewashed highlights and pitch-black shadows even in extreme high-contrast scenes. It also lets you set a range of exposure shifts or use the Automatic Position Adjustment function.** You can also choose the Advanced HDR (A-HDR) mode, which creates a dramatic photographic expression by adopting the technologies used in the Clarity control function.

* The HDR mode cannot be used in some shooting modes, and is not compatible with some functions.
** The Automatic Position Adjustment function is fixed at the OFF mode when the Interval or Interval Movie shooting mode is selected. It may not be possible to use this function in all cases, depending on the subject’s status and pattern, and/or the angle of view and focal length of the lens used.

For creating a personalized image with multiple application of special effects

The PENTAX K-70 offers a choice of nine digital filters during shooting, and 21 digital filters during playback. You can apply as many as 20 filters to a single image to create a distinctive, personalized work of photographic art.

Filters selectable during shooting and playback

Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome

Filters selectable during playback only

Base Parameter Adjustment, Tone Expansion, Sketch, Water Color, Pastel, Posterization, Miniature, Soft, Starburst, Fish-eye, Slim, Monochrome

Unicolor Bold

Three ways to synthesize creative visual expressions

The PENTAX K-70’s multi-exposure function provides average, additive and comparative brightness settings.

The PENTAX K-70 lets you synthesize a single composite image from two to 2,000 images, while providing three synthesis modes: average, additive and comparative brightness. During Live View shooting, it displays a translucent image of the already captured images on its LCD monitor, allowing you to make precise alignment of the images.

Average

Average

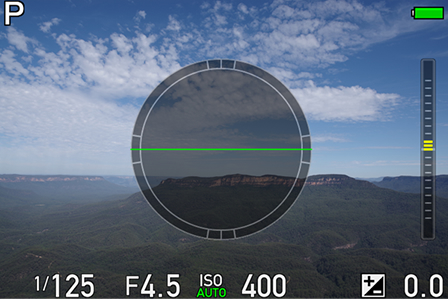

Accurate detection and at-a-glance indication of the camera’s horizontal and vertical tilt

The PENTAX K-70 has a built-in digital level that detects the horizontal and vertical tilt of the camera with great accuracy, and indicates the obtained information on the LCD monitor. This is a very useful tool in landscape and nightscape photography. It also displays the camera’s horizontal tilt on an exposure bar scale in the viewfinder.

Simply by setting the mode dial to AUTO and pressing the shutter release button, the PENTAX K-70 automatically selects the best shooting mode for a given scene or subject from such options as Portrait, Landscape and Moving Object. This simplifies complicated mode setting operations for first-time SLR users.

Scene Mode

The PENTAX K-70 provides 19 distinctive Scene Modes. As soon as you choose one of them, the camera automatically optimizes settings for you.

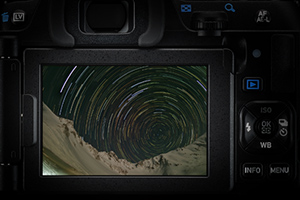

Creating a fantastic movie with traces of the stars

This mode lets you record traces of the stars or illuminations on a 4K-resolution movie file. Using the fade-in and fade-out functions, you can create a fantastic movie.

Documenting, synthesizing and playing back a constantly changing subject in a high-resolution movie

The PENTAX K-70’s Interval Movie mode allows you to record still images of a slowly changing subject at a fixed interval, link them into a single 4K-resolution (3840 x 2160 pixels) movie file, and play it back,* as if fast-forwarding the time on the screen.
* When playing back the movie file on a device other than the PENTAX K-70, the user is advised to use a PC operating environment supporting 4K-resolution movie playback.

For easy transfer of captured images to a smartphone

The PENTAX K-70 provides a set of wireless LAN (Wi-Fi) functions* to support operations using mobile devices such as smartphones and tablet computers. Since you can transfer captured images instantly to the mobile device, you can enjoy them away from the camera.

* The dedicated Image Sync application is required to remotely release the camera’s shutter and browse captured images using a mobile device.

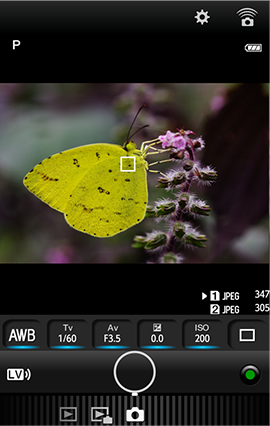

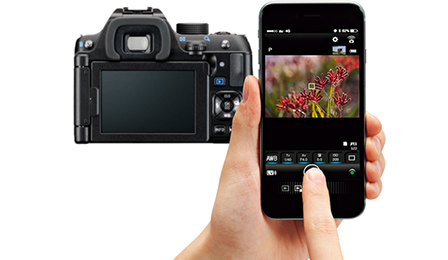

Remote control of camera operations using mobile devices

By installing the dedicated Image Sync application* in your mobile device, such as a smartphone or tablet computer, you can remotely control camera operations from a distance. For instance, you can adjust camera settings including aperture, shutter speed and ISO sensitivity to the desired level, then release the shutter from your mobile device. You can even download captured images onto the mobile device, then upload your favorite images to social networking service websites.

*Image Sync can be downloaded free of charge from the App Store (for iOS models) or Google Play™ (for Android™ models).

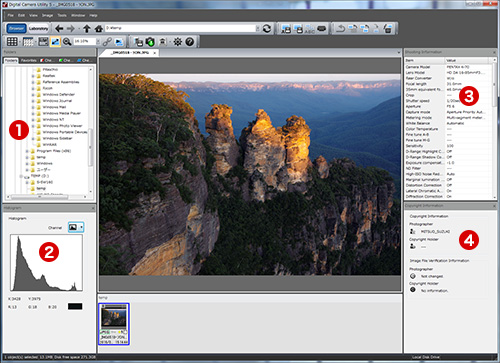

Main window structure (Browser mode)

Navigation panel

Control panel (image data)

Control panel (shooting data)

 Control panel (copyright information)

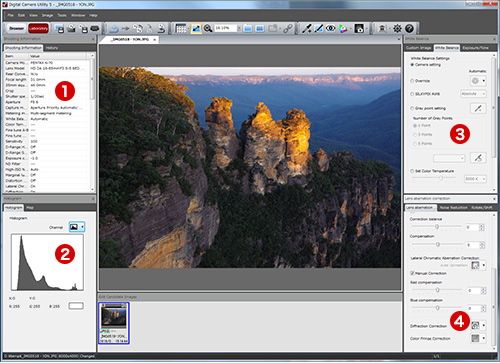

Main window structure (Laboratory mode)

Control panel (shooting data and history)

Control panel (image data and site map)

Control panel (Custom Image, white balance and exposure/tone)

Control panel (lens aberration compensation, noise reduction and rotation/shift)
