44x33mm CCD image sensor is the key high-quality images
Distinctive imaging characteristics different to 35mm format
40 effective megapixels deliver exceptional resolving power
Low-pass-filter-less design optimizes lens performance
Super-fine-gradated images for faithful light and colour
645AF2 lens mount accepts a rich lineup of high quality lenses
Custom Image function broadens the scope of visual expression
Reversal Film mode for a dramatic finishing touch
RAW-data development for effortless, computer-free editing
Dynamic-range expansion for fine-detail with rich gradation
Dual-slot design for SD/SDHC memory cards
High-quality images without distortions and colour shifts
High-precision, 11-point autofocus with new SAFOX IX+
Intelligent metering system with 77 multi-pattern segments
Flexible multi-mode exposure system features nine different modes
Digital level for accurate horizontal and vertical alignment
Smooth operation unmatched by other medium-format cameras
Auto sensitivity control expands the creative possibilities
Advanced optics contribute to the extra-clear viewfinder
Efficient, fingertip control of shooting settings
3.0 inch wide-view monitor with approximately 921, dots
Magnesium-alloy casing for durability and light weight
Diecast-aluminum chassis for kinetic accuracy and thermal stability
Airtight construction prevents the intrusion of dust and water
DR II mechanism with Dust Alert system removes unwanted dust

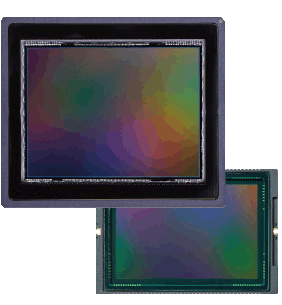

44x33mm CCD image sensor is the key high-quality images

Image size is a very important factor in advanced photography: the larger the image size, the more faithfully the ambience and sense of depth can be described, resulting in colour-rich, fine-detailed images. The 645D incorporates a large, high-performance CCD image sensor (approximately 1.7 times larger that that of 35mm-format models). Because of this, it provides superb image description, unmatched by 35mm-format photography, and gives a boost to the creative aspirations of all photographers.



Distinctive imaging characteristics different to 35mm format

Rich graduation, natural depth-of-field depiction at open aperture, and crisp image definition at smaller apertures. The large image circle and broad sensor plane of the medium-format image sensor assures these benefits — factors essential for producing super-high-quality, true-to-life images unrivaled by 35mm-format counterparts. In addition, since a medium-format lens has a longer focal length than a 35mm lens with the same angle of view, it offers a better description of plasticity and makes the subject stand out more sharply against beautifully obscured background.
40 effective megapixels deliver exceptional resolving power


Thanks to its approximately 40 effective megapixels, the 645D delivers super-high-resolution images equal in quality to those captured by the high-end digital camera backs used at professional photo studios. Its resolving power is far superior to that of 35mm-format digital SLR cameras or film-format 645 cameras.* Even when printed on large-format papers (measuring as large as 420mm by 297mm), you are assured of high-density, true-to-life artwork. When printed on the larger papers (measuring as large as 1,189mm by 841mm) used for photo exhibitions, the difference in resolution becomes even more evident. Sharply defined details make your images more fascinating and inspiring.


* Based on PENTAX assessment standards (as of February 2010).



Low-pass-filter-less design optimizes lens performance

While the low-pass filter (LPF) is effective in minimizing the adverse effects of false colors and moiré, it can cause a deterioration in image sharpness. Because the 645D was designed for the highest resolution in mind, it features an LPF-free CCD unit, which can optimize the resolving power of the lens and the image sensor without compromising the overall image resolution. Thanks to its super-high resolving power, the 645D delivers high-quality images so sharp and vivid that even every leaf of a tree in a scenic image stand out clearly and individually.
Super-fine-gradated images for faithful light and colour
The 645D’s high-performance 14-bit A/D converter converts the analog signals output by the CCD image sensor to data-rich, multi-gradation digital signals (with a maximum of 16,384 gradations), which are then forwarded to the PRIME II imaging engine. Thanks to its high-speed data-processing capacity and new algorithm, this high-performance imaging engine instantly processes as much as 40 megapixels of data to produce super-high-quality images, which are truly satisfying even to the most demanding photographers. This sophisticated imaging engine can even compensate lens aberrations for the photographer.
645AF2 lens mount accepts a rich lineup of high quality lenses

The 645D features the new PENTAX 645AF2 lens mount, designed to accept a vast selection of smc PENTAX 645-series interchangeable lenses — from wide angle to telephoto — all of which offer exceptional image descriptive power. With an FA 645-series lens mounted, the 645D retains autofocus operation. The new D FA 645 series is designed to minimize flare and ghost images, while retaining the superb descriptive power of conventional 645-series lenses, to produce sharp, bright images even at edges.
Note: When a conventional 645-series lens is mounted on the 645D camera body, its angle of view becomes approximately 1.3 times wider than when mounted on a 645 film-format camera body, while its focal length becomes approximately 0.8 times shorter in terms of the 35mm format.

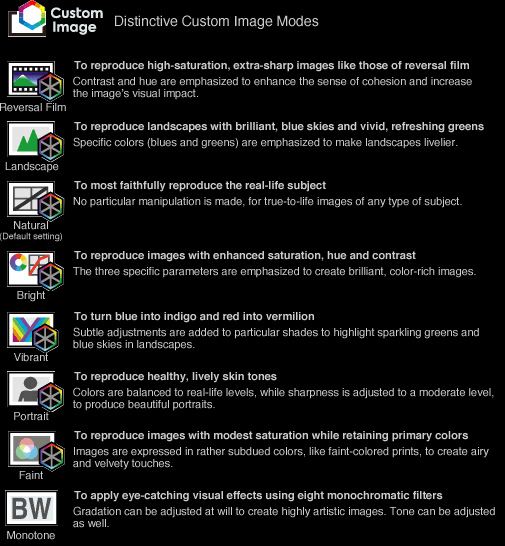

Custom Image function broadens the scope of visual expression
The 645D’s Custom Image function features eight distinctive finishing touches, each of which automatically adjusts saturation, hue, key, contrast, sharpness (fine sharpness selectable) and other parameters to preprogrammed levels. All parameters can be adjusted manually to the desired levels for the visual effects you want to achieve.*
Reversal Film mode for a dramatic finishing touch
The 645D offers a new Reversal Film finishing touch, which automatically enhances contrast to create striking images. By combining this mode with the dodging function of the PENTAX Digital Camera Utility software (included), you can easily produce images closely resembling those made with reversal film, and print them using your home printer.
* Saturation and hue can be manually adjusted in all finishing touch modes, except for Monotone. Only contrast can be manually adjusted in the Reversal Film mode.
RAW-data development for effortless, computer-free editing
The 645D not only develops RAW-data files within its body, but it can also store them as new JPEG files. You can even adjust or switch various image-processing modes and functions, including white-balance control and Custom Image modes, during development. Thanks to this user-friendly feature, you can swiftly and effortlessly process recorded images into high-level artistic works, then play them back or print them as necessary, without requiring a computer.
Dynamic-range expansion for fine-detail with rich gradation
The 645D allows you to expand the dynamic range toward either the highlight (high-illumination) or shadow (low-illumination) side, helping you to efficiently minimize washed-out and pitch-black areas. Unlike the exposure compensation function, this function expands the reproducible gradation range itself. So, even when you expand the dynamic range toward the highlight side,** for instance, the image's shadow areas are unaffected. As a result, you can produce striking, lively artworks with a superb sense of plasticity.
** When the dynamic range is expanded for highlights, the lowest-available sensitivity is ISO 400 (or ISO 200 in combination with the sensitivity expansion function).
Dual-slot design for SD/SDHC memory cards
The 645D offers a choice of RAW or JPEG data recording formats, or you can choose to simultaneously record the image in both formats. With one push of the RAW button, you can instantly switch the recording mode from one to the other. Since the 645D offers a pair of memory-card slots (SD1 and SD2) which can accept two SD and/or SDHC memory cards, you can even assign a different recording format or function to each slot using the direct button. For instant, one card can be used as the back-up of the other; recorded images can be assigned to different cards according to the recording format; or, using the Reserve mode, the second card can be programmed to automatically start accepting data when the first reaches its storage capacity.
Note: For safe storage of image data, SD/SDHC memory cards of Class 6 or later are recommend for use with the 645D.Top ^
High-quality images without distortions and colour shifts
The 645D's lens characteristic compensation functions**** effectively compensate for the barrel- and spool-type distortions common to wide-angle and zoom lenses, as well as for the lateral chromatic aberration that causes slight color shifts along the subject's outline. By effectively compensating optical characteristics for specific lenses on the camera side, the 645D makes images appear sharper and crisper.
**** These functions are available only with D FA 645- and FA 645-series lenses.Top ^

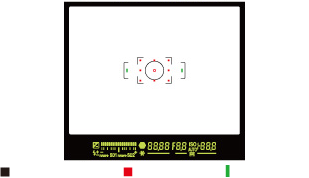

High-precision, 11-point autofocus with new SAFOX IX+
The 645D incorporates an advanced SAFOX IX+ focus sensor featuring more advanced optics and a new light-source detection function. Its sophisticated autofocus system has 11 sensor points (with nine cross-type sensors positioned in the middle) to assure extra-accurate focusing on the subject. The number of sensor points can be changed to three or five, while the AF frame mode can be selected from auto, select and center.Top ^

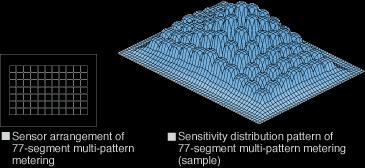

Intelligent metering system with 77 multi-pattern segments
The 645D's advanced metering system offers three different metering modes to accommodate varying lighting conditions and individual preferences. The multi-pattern metering mode divides the image field into 77 segments to assure high-precision auto-exposure operation by minimizing the adverse effects of strong light sources and excessive reflectance.Top ^
Flexible multi-mode exposure system features nine different modes
The 645D inherits the PENTAX-invented Hyper Program and Hyper Manual modes, which are extremely popular among experienced photographers. To assure flexible, creative photo shooting, it also provides nine different shooting modes to work with. In addition, you can even select a program line from six options prior to your shooting session.Top ^
Digital level for accurate horizontal and vertical alignment
The 645D comes equipped with a digital level, which detects and displays the vertical and horizontal inclination of the camera. This function comes in handy when faced with landscapes with no definite base line and nightscapes with an obscured base line. You can also switch the exposure bar-graph in the viewfinder to function as a digital level indicator, so that you can check the inclinations of both the camera and the image at a glance, without taking your eye away from the viewfinder eyepiece.Top ^
Smooth operation unmatched by other medium-format cameras
The 645D's mirror works extremely quietly, because its swing-up motion is regulated by a braking mechanism, while its swing-down motion is controlled by a motor. As a result, camera shake during mirror swing-up and viewfinder image shake during swing-down are effectively minimized. Coupled with the low-noise charge mechanism in the new shutter unit, the 645D assures quiet, disturbance-free shooting at all times.Top ^
Auto sensitivity control expands the creative possibilities
The 645D offers both automatic and manual sensitivity control, allowing you to select the desired ISO sensitivity from ISO 200 to ISO 1000 (or ISO 100 to ISO 1600 in combination with the sensitivity expansion function). In the Auto mode, you can avoid accidentally shooting images at unintentional sensitivities by limiting the range of auto sensitivity control in advance. You can even choose whether to raise the sensitivity positively or passively. All these options are provided to better accommodate many different subjects and particular shooting styles.Top ^
Advanced optics contribute to the extra-clear viewfinder
A newly designed, trapezoid-shaped glass prism is the key to the 645D's compact dimensions. By coupling this prism with a Keplerian telescope-type eyepiece unit, the 645D offers both a bright, clear viewfinder with an approximately 98% field of view, and a highly portable, downsized camera body. It also features the DF-80 Natural-Bright-Matte focusing screen to assure outstanding viewing comfort and facilitate focusing operations.Top ^
Efficient, fingertip control of shooting settings
When you push the DISP button, the 645D instantly displays the status screen on the LCD monitor, for at-a-glance confirmation of a wide range of photo-shooting settings. One push of the INFO button then switches the monitor display to the control panel, where various modes and functions can be changed with smooth, pushbutton operation. This time-efficient control system lets you get prepared for shooting swiftly and effortlessly.Top ^
3.0 inch wide-view monitor with approximately 921, dots
Provided with brightness/color control functions, and protected with an AR-coated, tempered-glass plate to minimize reflections and prevent scratches.Top ^
Magnesium-alloy casing for durability and light weight
The 645D's casing is made of lightweight, high-strength magnesium alloy, which also possesses outstanding shock-resistant, heat-radiation and magnetic-shielding characteristics. In fact, it forms a highly reliable, extra-solid armor for internal mechanisms. As a result, the 645D endures many years of strenuous field use and meets the trust and expectations of demanding photographers. Top ^
Diecast-aluminum chassis for kinetic accuracy and thermal stability
Provided with brightness/color control functions, and protected with an AR-coated, tempered-glass plate to minimize reflections and prevent scratches.Top ^
Airtight construction prevents the intrusion of dust and water
In keeping with PENTAX's pursuit of a highly reliable photographic system for outdoor settings, both the 645D and new D FA 645 lenses feature dustproof, weather-resistant designs. The camera body is also cold-resistant, assuring solid performance at temperatures as low as -10°C. Since the 645D performs superbly and dependably even in the harsh shooting conditions of cold latitudes, you can capture once-in-a-lifetime shutter opportunities without failure.Top ^

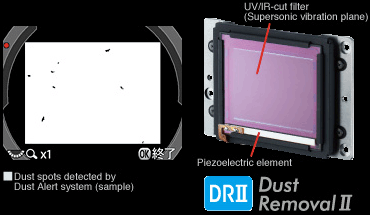

DR II mechanism with Dust Alert system removes unwanted dust

To prevent annoying dust spots from ruining potentially great images, the 645D features the dependable DR (Dust Removal) II mechanism. By shifting UV/IR-cut filters placed in front of the CCD image sensor at supersonic speed using a piezoelectric element, this mechanism effectively and efficiently shakes dust off the image sensor. The camera even features the innovative Dust Alert system, which detects dust particles clinging to the image sensor and indicates their positions on the LCD monitor. Thanks to these user-friendly tools, you can spot and remove dust much easier and more completely than ever before.


Bundled with PENTAX D-FA 645 55mm F2.8 AL [IF] SDM AW lens

  • Equivalent to 43.5mm in the 35 format
  • Dustproof, weatherproof
  • Aero Bright coating
  • First PENTAX completely rounded diaphragm
  • SDM focus mechanism
  • Weight: 416g
